Cotton Chute Feed
Feeding roller:
Type (mm): Sawtooth
Diameter (mm): 180
Rotating speed (r/min): 0-2.05
Opening handle:
Type (mm): 4-roll spike
Diameter (mm): 250
Rotating speed (r/min): 784
Shandong Hongye Machinery Co., Ltd. is one of the leading manufacturers and suppliers of cotton chute feed in China, also supports 1 year warranty. If you're going to buy the newest cotton chute feed made in China, welcome to get pricelist from our factory. Quality products and low price are available.
Application
FA177A series blowing, carding combined hopper, adopts leaning big diameter transmitting roller which produce better cotton layer. It adopts top and lower hopper structure, mainly made uses mirror-surface stainless steel plate and features good rigidity, high precision, good tightness. The pressure sensor in general distributor ensures the evenness of cotton density in the hopper. The lower hopper adopts blower which expand blowing circulation through static pressure and made the pressure even in the whole width of lower hopper. Entrance pressure sensor of America is used to control the continuous cotton feeding of frequency-conversion motor of the top hopper roller and further improve the stability of lower hopper pressure.
Adopts entrance spiral arranged card wire beater, produce little fiber loss.
FA177B adopts straightward feeding, hold elastically.
|

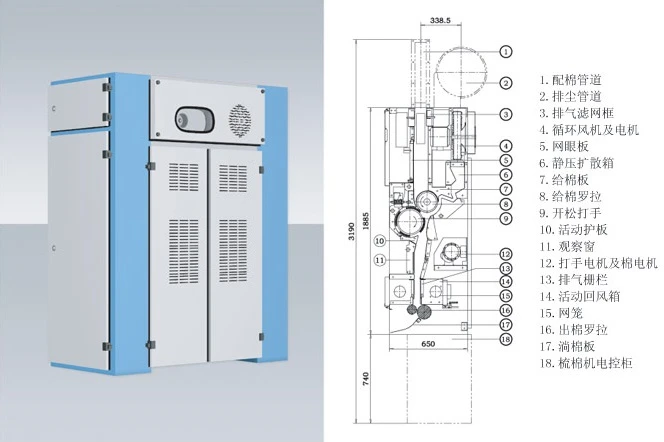

1. Feeding Tube |
2. Dedusting Windtube |
|
3. Top Store Box Airflow Exit |
4. Top Store Box |
|
5. Closed Cycling Airflow Blower |
6. Feeding Roller |
|
7. Opening Handle |
8. Pressure Parameter Adjusting |
|
9. Pressure Sensor |
10. Lower Store Box |
|
11. Lower Store Box Airflow Exit |
12. Feeding Roller |
|
13. Card Feeding Roller |
|
Main features
|
Operating width(mm) |
920 |
|
|
Feeding roller |
Type (mm) |
Sawtooth |
|
Diameter (mm) |
180 |
|
|
Rotating speed (r/min) |
0-2.05 |
|
|
Opening handle |
Type (mm) |
4-roll spike |
|
Diameter (mm) |
250 |
|
|
Rotating speed (r/min) |
784 |
|
|
Blower impeller |
Type (mm) |
12-leave reclined |
|
Diameter (mm) |
290 |
|
|
Rotating speed (r/min) |
2820 |
|
|
Single Set Production (kg/h) |
35-100 |
|
|
Power (kw) |
1.7 |
|
|
Size(L×W×H)mm |
695×1544×2451 |
|
|
Netweight (kg) |
900 |
|
