Blow Room Multi Mixer

Blow Room Multi Mixer

The machine si the mixing process of blowing room, It is suitable for mixing cotton, especially for synthetic fibres whose mixing evenness is highly demanded. As FA025A is equipped with a beater at the outlet, the mixed fibres can be further opened before feeding to the next machine.
Send Inquiry

Shandong Hongye Machinery Co., Ltd. is one of the leading manufacturers and suppliers of blow room multi mixer in China, also supports 1 year warranty. If you're going to buy the newest blow room multi mixer made in China, welcome to get pricelist from our factory. Quality products and low price are available.



Application

The machine si the mixing process of blowing room, It is suitable for mixing cotton, especially for synthetic fibres whose mixing evenness is highly demanded. As FA025A is equipped with a beater at the outlet, the mixed fibres can be further opened before feeding to the next machine.

FA025FA025A Multi Mixer



Main Features



  • There are three scientific and effective mixing forms used: Air current mixing, pile layer mixing,and concentrated mixing.
  • An uniform and identical mixing effect can be obtained from the machine. The quality of card sliver produced by the machine is excellent and the end-breaking rate in yarn spinning can be reduced obviously. It is particularly necessary for mixed fibre spinning.
  • Beside all the advantages of the model FA025, FA025A is used in blowing room, a fine opener may be saved.

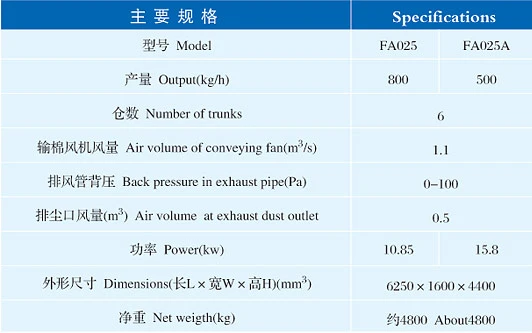

product-532-333



Application

The machine is suitable for the raw cotton of all classes or chemical fiber shorter than 76mm, Fully mix the fiber in various quality and class. Has become a necessary role in the flow of cotton opening, blowing and carding.

FA022FA028 Multi Mixer



Main features



Machine Type

FA022-4

FA022-6

FA022-8

FA022-10

Productionkg/h

600

800

1000

1200

Width mm

1400

Beater

Diametermm

420

Rotating speed r/mm

260, 330, 400

260; 330

Roller

Diameter mm



Rotating speed r/mm

0.14-1.1

0.1; 0.2; 0.3

Feeding blower

Diametermm

500

Rotating speedr/mm

1200; 1440; 1728

General Power kw

7.75

12.2

Size (L×w×h)

4735×2600×3805

5735×2600×3805

6735×2600×3805

7735×2600×3805



Machine Type

FA028

Max. Feeding kg/h

800/1000

Width mm

1200/1600

Beater type

6-wing teeth shape armor plate

Diameter mm

250

Rotating speed r/mm

760

Roller diameter mm

200

Rotating speed r/mm

0.05-0.83

Dedusting air delivery

Min: m3/h

4000/5000

max: m3/h

4600/5600

Air pressure

min pa

-20

max pa

-110

Dedusting capacity max kg/h

1

General Power kw

6.05kw

Size(L×W×H)

4664.5×2752×4005

4664.5×3152×4005
