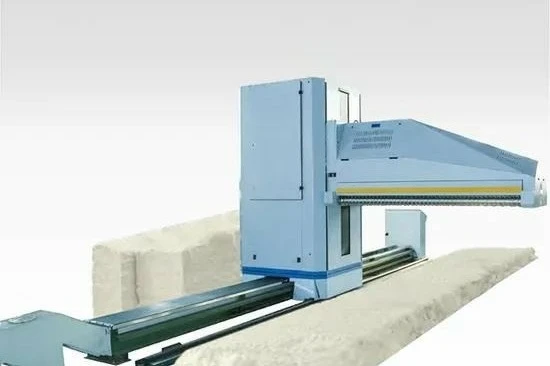

Reciprocating Bale Opener
Production (kg/h): 1000/1500
Bale length (m): Basically visible 20.3 adjustable at options
Effective plucking width (mm): 1720/2300
Max. hoist height (mm): 1700, 1775
Beater type: Double beater sawtooth knife
Shandong Hongye Machinery Co., Ltd. is one of the leading manufacturers and suppliers of reciprocating bale opener in China, also supports 1 year warranty. If you're going to buy the newest reciprocating bale opener made in China, welcome to get pricelist from our factory. Quality products and low price are available.
Application
As the first flow of blower group the machine is suitable for the plucking of all classes of raw cotton, cotton chemical fiber and the middle to long fiber shorter than 76 mm. The bale plucker beater make intermittently reciprocating with the turret and make precise plucking to the bales. The caught cotton bundle be transmitted to next opening equipment for further treatment and the catching arm fitted with double sawtooth beater can move up and down and rotate automatically.
Specifications
|
Machine Type |
FA006 |
FA006C |
|
Production (kg/h) |
1000/1500 |
|
|
Bale length (m) |
Basically visible 20.3 adjustable at options |
|
|
Effective plucking width (mm) |
1720/2300 |
|
|
Max. hoist height (mm) |
1700 |
1775 |
|
Beater type |
Double beater sawtooth knife |
|
|
Covering belt |
Reciprocating dragging, winding |
|
|
Bale leveling |
N |
Y |
|
Plucking in group |
N |
Y |
|
Plucker slewing |
Manual |
Auto |
|
Plucker lifting memory |
N |
Y |
|
Pulley running memory |
N |
Y |
|
General Power |
10.69 |
10.74 |
|
Machine net weight (kg) |
About4000 |
|
