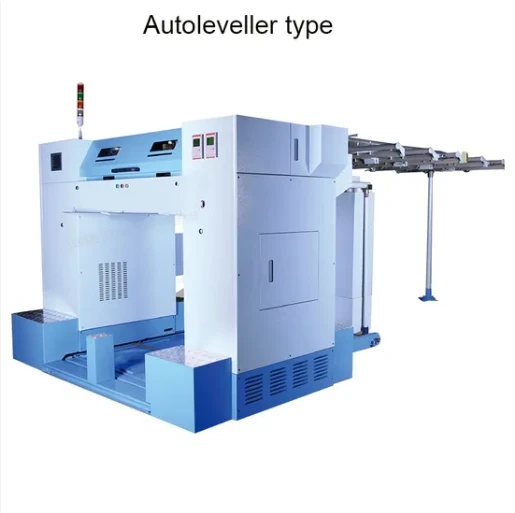

High Speed Draw Frame
Design output speed: Vmax=800m/min.
￠500X1100 high-capacity sliver can output.
Adopt frequency conversion timing, decrease the pulley mutation, resolve the sliver deteriorates when operating the button.
Adopt PLC to dominate, digital machine front, photoelectricity control, cause the equipment run more dependable and steady.
￠500X1100 high-capacity sliver can output.
Adopt frequency conversion timing, decrease the pulley mutation, resolve the sliver deteriorates when operating the button.
Adopt PLC to dominate, digital machine front, photoelectricity control, cause the equipment run more dependable and steady.
Send Inquiry
Shandong Hongye Machinery Co., Ltd. is one of the leading manufacturers and suppliers of high speed draw frame in China, also supports 1 year warranty. If you're going to buy the newest high speed draw frame made in China, welcome to get pricelist from our factory. Quality products and low price are available.
Main Features
- Design output speed: Vmax=800m/min.
- ￠500X1100 high-capacity sliver can output.
- Adopt frequency conversion timing, decrease the pulley mutation, resolve the sliver deteriorates when operating the button.
- Adopt PLC to dominate, digital machine front, photoelectricity control, cause the equipment run more dependable and steady.
- Adopt online detection, effectively master the sliver quality, touch screen control, and achieve people-machine conversation.
- Apply network technology, for achieving the drawing machine long-range supervision.
- Compelling scarce oil lubricating system, decreasing gear abrasion favorable for high speed turns.
- The roller bearing lubricant adopts fat centralized lubricating system, convenient for daily maintenance of the equipment.
- Waving shelf adding pressure adopts spring/pneumatics adding pressure optional.
- With automatic exchange device, improve production efficiency.
- With automatic cotton blow device, achieve timely cleaning.
- With autoleveller (FA318A feature)
Technical standard
| Aperture number | 1 burl 2 holes |
| Aperture distance | 700mm |
| Max. output speed | 13.3m/s(800m/min) |
| Total drafting multiple | 5-14 times |
| Drafting style | 5 over 4 with pressure bar drafting |
| Feed style | energetic style lognitudinal feed |
| Feed sliver number | 6-8 pieces |
| Applicable fiber variety | Cotton and cotton synthetics |
| Suitable fiber length | 20-75mm |
| Output sliver can dimension | ￠350, ￠400, ￠500X900 or 1100 |
| Main motor power | 7.5KW/4P |
| Air-blower motor power | 0.75KW/2P |
| Can change motor power | 0.2KW/4P |
| Mainframe OAD | 2490x1000x2110mm |
| Machine weight | 2000KG |
