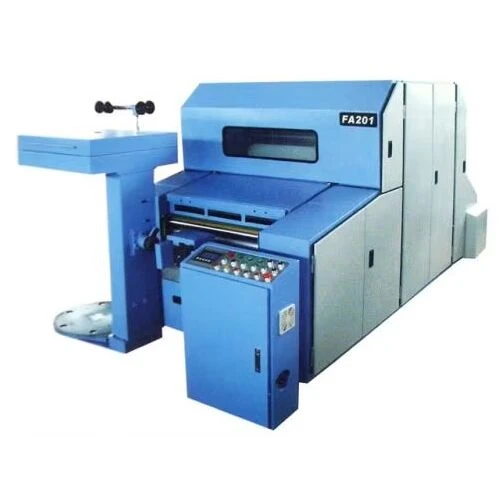

Textile Carding Machine

Textile Carding Machine

Patented three-roller stripping cotton sector, the main body rotation;
Adopted to achieve doffer converter stepless adjustment;
New In the first three of the three fixed cover;
Spurs download a set of roller carding plate;
New type of high-quality metal rack;
Send Inquiry

Shandong Hongye Machinery Co., Ltd. is one of the leading manufacturers and suppliers of textile carding machine in China, also supports 1 year warranty. If you're going to buy the newest textile carding machine made in China, welcome to get pricelist from our factory. Quality products and low price are available.



Main features


● Patented three-roller stripping cotton sector, the main body rotation;
● Adopted to achieve doffer converter stepless adjustment;
● New In the first three of the three fixed cover;
● Spurs download a set of roller carding plate;
● New type of high-quality metal rack;
● Display instrument equipped with numerical control, non-contact sensors, display Be a speed ban production and processing parameters, such as broken, and failure to return to spend a number of safety devices stop since
● Adapt to the requirements of users, there are a variety of cleaning options



Technical specifications



The scope of application

apply to the local fiber length of 22-76 mm of cotton, chemical fiber and its blend

Quantitative sliver (g / m)

3.5 ~ 6.5

Mianjuan adapt to the specifications (mm)

Maximum diameter of 550, width 980

Yield (kg / h)

Top 45

Output speed (m / min)

57.7 ~ 121.2

Drawing a multiple of total

67.5 ~ 120.5

Roller speed of work (to / min)

800 930

speed work (to / min)

6 ~ 36

Cylinder speed of work (to / min)

330 360

Cover the number kan (cover work / cover of the total)

41/106

Cover speed (mm / min)

72 91 129 141 184 241 342

Combing parts

Gill plate roller carding a
Cover fixed after 3
Cover fixed before the 3

Sliver application of the tube (mm)

Diameter: φ600 high: 900 1100
(Article square circle, on-demand users)

Total installed capacity of power

5.17 kW

Security cover in the form of

Closed

Area (length × width)

3591 × 2123 (mm)

Machine net weight (kg)

About 5000
