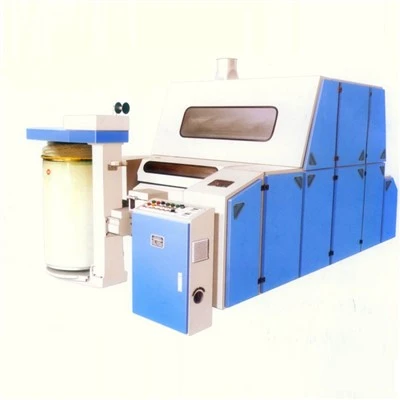

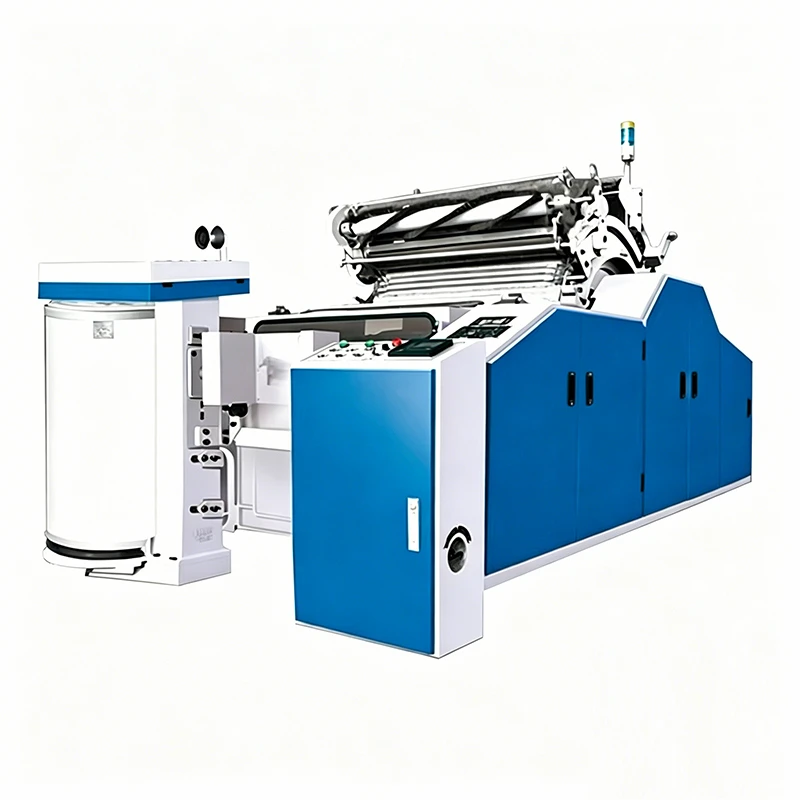

Cotton Carding Machine

Unique patented three-roller stripping cotton;
Increase in the gill plate carding roller;
After the first three additional two fixed cover;
Brake fast-Astoria;
Used Step-pressure roll;
Use of Adolf timing belt drive;

Send Inquiry

Shandong Hongye Machinery Co., Ltd. is one of the leading manufacturers and suppliers of cotton carding machine in China, also supports 1 year warranty. If you're going to buy the newest cotton carding machine made in China, welcome to get pricelist from our factory. Quality products and low price are available.

Main features

Unique patented three-roller stripping cotton;
Increase in the gill plate carding roller;
After the first three additional two fixed cover;
Brake fast-Astoria;
Used Step-pressure roll;
Use of Adolf timing belt drive;
About closed-end security cover;
Quality of the MCC.

Technical specifications

The scope of application		apply to the local cotton and chemical fiber spinning pure or blended with Mianjuan feeding.
Quantitative production		3.5 ~ 6.5 g / m
Production		Maximum 35 kg / h
Working width		1000 mm
Additional pieces of comb		roller carding a board
		Cover fixed after 2
		cover fixed before the
Drawing a multiple of total		67 ~ 120
Spurs roll diameter of the work		Φ250 mm
Barbed roller speed of the work	cotton	1070 to /
	Fiber	980 /
Work of the cylinder diameter		Φ1289 mm
Cylinder speed of the work	Cotton	360 /
	Fiber	330 /
The work of Adolf diameter		Φ706 mm
Speed of the work of Adolf		21.3 ~ 38.2 to /
Cover number (cover work / cover of the total)		40/106
Flat rate of	Cotton	177 214 266 mm / sub
	Fiber	81 98 122 mm / sub
Sliver application of the tube (diameter × height)		Φ600 × 900 mm φ600 × 1100 mm
Dust		Cylinder triangle-Astoria, gill cover roller cover, curtain delivery vehicles belly 3 miscellaneous cleaning
Suction air flow in a row		1300 m 3 / h
Wind		-500 ~ -600 Pa
Total power installed capacity		4.4 kW
Main motor		3.3 kW
Adolf drive motor		1.1 kW (frequency, a significant number of users may choose to use)
Area (length × width)		3809 × 2092 mm
Weight of the whole machine		About 4500 kg
