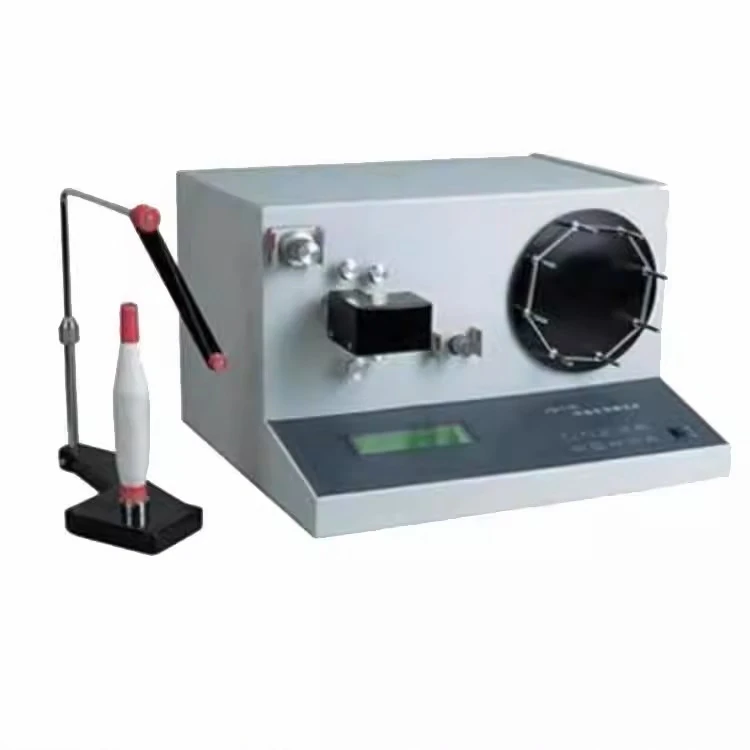

Yarn Hairiness Tester
Hairiness length settings Precision: ≤0.1mm
Hairiness Resolution: ≤0.5mm
Test speed: 30m/min±5%
Yarn Testing Fragment Length: 1～99m(Arbitrary)
The number of consecutive test: 1-99(Arbitrary)
Shandong Hongye Machinery Co., Ltd. is one of the leading manufacturers and suppliers of yarn hairiness tester in China, also supports 1 year warranty. If you're going to buy the newest yarn hairiness tester made in China, welcome to get pricelist from our factory. Quality products and low price are available.
This instrument was used to determine indicators of yarn hairiness special instrument, in line with the textile industry in 2000 promulgated a new standard: Yarn hairiness determination - Projection counting FZ/TO1089-2000. The instrument uses light, mechanical, electrical integration, design, set the length of hairiness, high precision, Yarn yarn stability of walking stable, the computer auto-detection, correction, display and statistics, hairiness test data stability, and Taiwan, a small difference.
Main Technical Data
|
Detection of hairiness length |
A simultaneous determination of the length of hairiness, the number of hairiness 1,2,3,4,5,6,7,8 mm |
|
Hairiness length settings Precision |
≤0.1mm |
|
Hairiness Resolution |
≤0.5mm |
|
Test speed |
30m/min±5% |
|
Yarn Testing Fragment Length |
1～99m (Arbitrary) |
|
The number of consecutive test |
1-99 (Arbitrary) |
|
Data output mode |
LCD screen display and EPSON LQ series printers print records |
|
Statistics |
Hairiness index on average, the overall uneven rate, mean square deviation, yarn tube uneven rate and the histogram |
|
Outline size (Engine) |
500×450×310mm |
