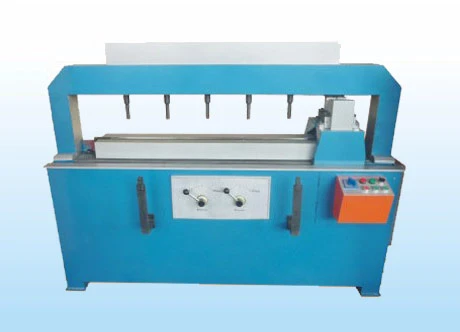

Stationary Flat Mounting Machine
Working width range: 940–1143 mm
Wrapping moving speed: 60 mm/s
Air supply pressure: 0.5–0.7 MPa
Power supply: 380V, 50Hz
Motor power: 1.1 kW
Shandong Hongye Machinery Co., Ltd. is one of the leading manufacturers and suppliers of stationary flat mounting machine in China, also supports 1 year warranty. If you're going to buy the newest stationary flat mounting machine made in China, welcome to get pricelist from our factory. Quality products and low price are available.
FU294D flat clothing mounting machine is special auxiliary equipment for carding workshop, used to wrap all types of flat clothing onto flat bars of carding machines. It features stable running, high automation, easy operation and superior wrapping quality. Custom widths from 1m to 1.5m are available upon request.
Main Advantages
- Frequency conversion speed control; continuous pressure applied during the whole wrapping process without pressure release, ensuring flat and firm adhesion between clothing and flat bar.
- Equipped with two sets of pressing rollers to guarantee uniform and neat edge clamping.
- Wide compatibility, suitable for all common flat clothing specifications for cotton spinning carders.
Main Technical Specifications
|
Applicable flat bar width |
33.3 mm |
|
Working width range |
940–1143 mm |
|
Wrapping moving speed |
60 mm/s |
|
Air supply pressure |
0.5–0.7 MPa |
|
Power supply |
380V, 50Hz |
|
Motor power |
1.1 kW |
|
Net weight |
750 kg |
|
Overall dimension |
1930×720×1400 mm |
